Tough on the outside, green where it counts.

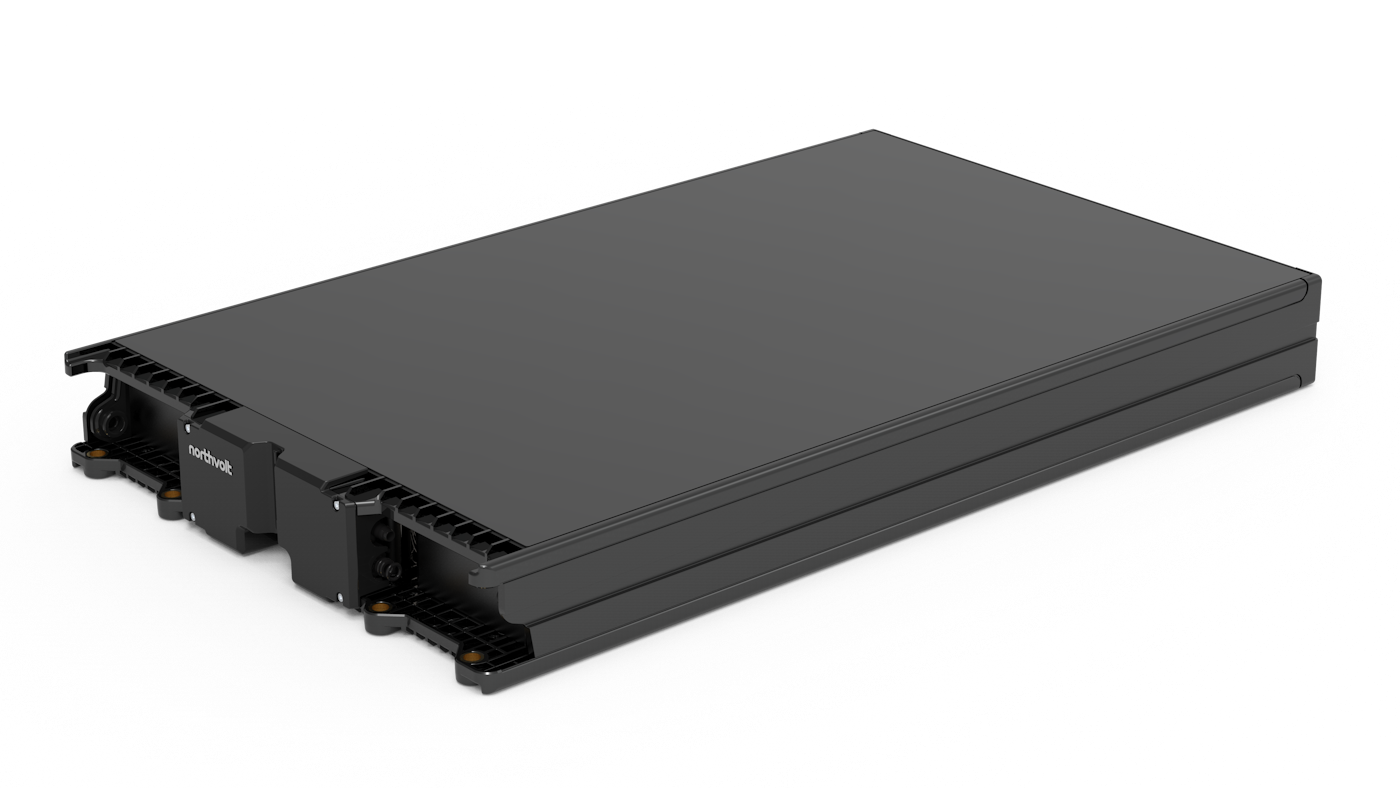

The Voltblock Cylindrical is a building block designed to construct battery packs with the highest sustainability and safety requirements in mind. With over 600 precision-soldered cells and compartmentalised to withstand the harshest conditions, this module enables you to create energy-dense, ruggedized solutions of any kind.

Specifications

Product Name
Voltblock C 12/90
Cells
INR2170 Energy
Nominal capacity
11,7 kWh
Voltage (nom)
72V-100V (88V)
Cell configuration
2x (28p12s)
C-rate discharge (cont)
1.35 C
C-rate charge (cont)
0.5 C
Thermal management
Liquid cooling
IP rating
IP20
Dimensions (LxWxH)
800x483x90 mm
Weight
54 kg
Availability
Available now
