Diesel engine, meet your maker.

Northvolt's battery packs are designed to replace the diesel engine under the harshest of circumstances. Highly flexible and configurable for stand-alone use or integration into customised systems.

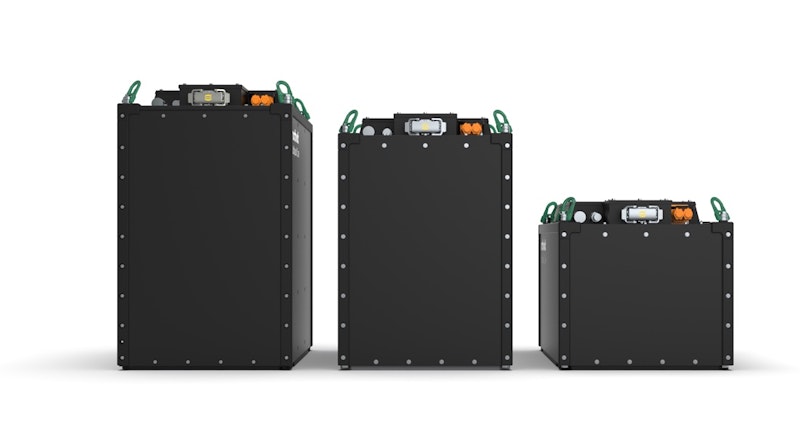

Voltpack Core

We designed Voltpack Core from the cell up to be a highly robust, modular component for as many electric applications as we could think of. Built around Northvolt's Voltblock modules, Voltpack Core provides a nominal capacity from 47 to 94 kWh.

Specifications

Product name
Voltpack Core 94/700
Cells
INR2170 Energy
Installed capacity
94 kWh
Voltage (nom)
576–797 V (707 V)
Cell configuration
192s28p
C-rate discharge (cont)
1 C
C-rate charge (cont)
0.5 C
Thermal management
Liquid cooling
IP rating
IP65
Dimensions (LxWxH)
834x553x930mm
Weight
613 kg
Availability
Available now
Product name
Voltpack Core 82/600
Cells
INR2170 Energy
Installed capacity
82 kWh
Voltage (nom)
504V-697 V (618 V)
Cell configuration
168s28p
C-rate discharge (cont)
1 C
C-rate charge (cont)
0.5 C
Thermal management
Liquid cooling
IP rating
IP65
Dimensions (LxWxH)
834x553x836 mm
Weight
544 kg
Availability
Available now
Product name
Voltpack Core 47/350
Cells
INR2170 Energy
Installed capacity
47 kWh
Voltage (nom)
288V - 398V (353V )
Cell configuration
96s28p
C-rate discharge (cont)
1 C
C-rate charge (cont)
0.5 C
Thermal management
Liquid cooling
IP rating
IP65
Dimensions (LxWxH)
834x553x535 mm
Weight
335 kg
Availability
On request
Modular and scalable

Voltpack Mobile

A mobile and scalable energy storage system delivering sustainable power across a wide variety of applications. Designed to provide local demand with temporary power or as a long-term plug and play solution. The modular design consists of an AC interface hub connecting up to five battery Voltpacks.

Learn more…

Specifications

Product Name
Voltpack Mobile 281/700
Cells
INR2170 Energy
Installed capacity
281 kWh
Voltage
576–797 V (707 V)
Cell configuration
3x(192s28p)
C-rate
Up to 1C
Thermal management
Integrated liquid cooling
IP rating
IP55
Dimensions
1600x2000x1200 mm
Weight
3000 kg

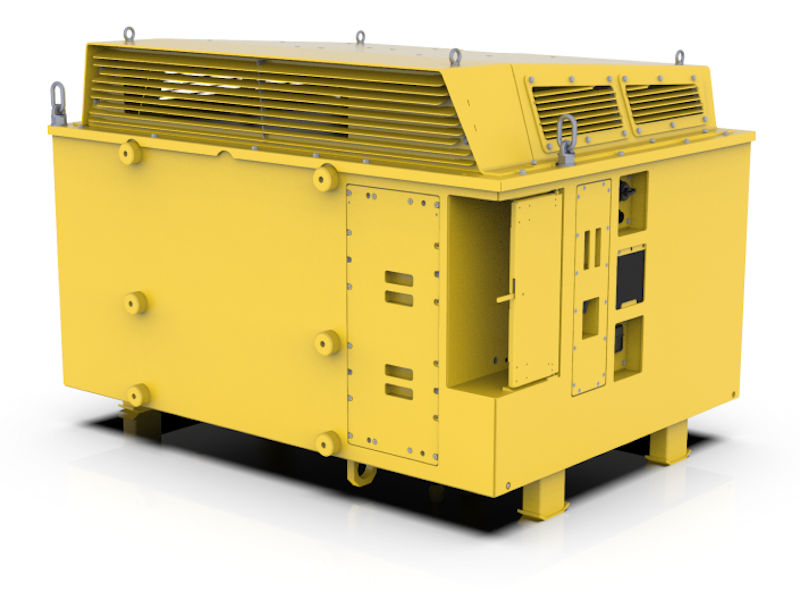

Voltpack Custom

From cell to complete battery system, Northvolt designs and builds complete solutions. With control like that we can shape and optimize the system to any of your needs. Deep in-house competence and transparency means you’re no longer tied down by spec-sheets.
